High Precision Printing Largest Size 750 * 600*750 mm For FDM 3D
Printing machine
1.Fully sealed printing,quieter,enviromental protection,no peculiar
smell,reduce the txtermal interference.
2.Cover open pward, the space is big and easy to remove the large
model.
3.Shell and internal transmission structure to separate each other,
the deformation of the shell ont internal transmission deviation,
internal fully independent.
4.The rhombic design around side,the acrylic side door more safe
and fashion.
5.Cooling fan,cooling rapidly temperature,no wire-drawing, no
crimping.
Fully enclosed desigh, printing constant temperature, reduce the
extemai interference,prevent to become warp edge.
6.All metal structure, wire rail running ,more stable and perfect
printing effect.
7.X,Y axis using linear guide, Z axis using double ball grinding
screw reinforcement, make position, more accurate,make layer
thickness more precission,6mm high temperature resistance of
aviation aluminum alloy hot beduniform beating;uniform heating,
high strength support base , keep the hot bed stable and smooth.
8.Highest precision with no jam, when filament is jam or no filamnt
inside,it will be auto-stop.
3D Printer specification:
| Style | YASIN-Aide750 ( Industrial Level 3D Printer) |
| Printer Dimension | 1300 × 1200 × 1100mm |
| Build Volume | 750 × 750× 750 mm (XYZ) |
| Extruder No. | 1 |
| Resolution | 0.05-0.2mm |
| Speed | 200-500mm/s |
| Nozzle Size | 0.40-0.80 mm |
| Language | Chinese/ English |
| Filament | PLA/ABS (1.75mm) |
| Nozzle Temp. | 180-235C |
| Baseplate Temp. | Patent Baseplate, No Need Heating |
| Print Technology: | FDM (Fused Deposition Modeling) |
| File Format | STL/OBJ/BMP |
| Os | Windows/Linux/Mac OX |
| Operation Way | Smart Touch Screen (LCD) |
| Interface | SD Card/ USD/ APP |
| Slicing Software | CURA |
| Voltage | 110/220V, 50-60Hz, 5.4-2.2A, 350W |
| Net Weight | 180KGS |
| Gross Weight | 200KGS |
| Guarantee | one year |
Packaging & Shipping:
Our machine are packed by thickness carton, honeycomb board, and
protective PE foam,which can protect 3d printer in a good
performance when you receive it.

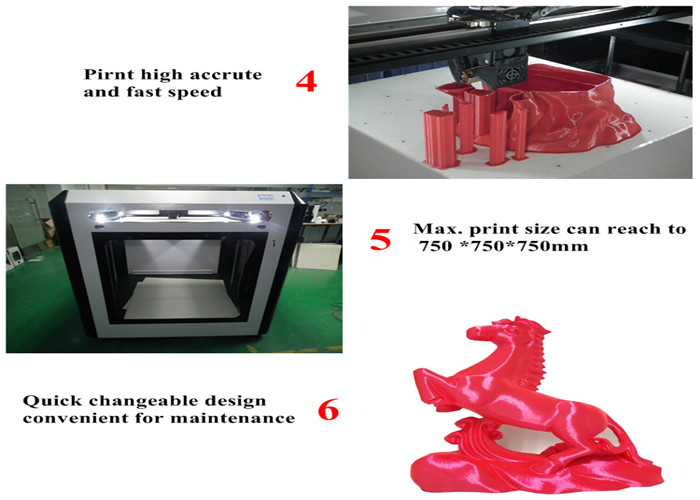

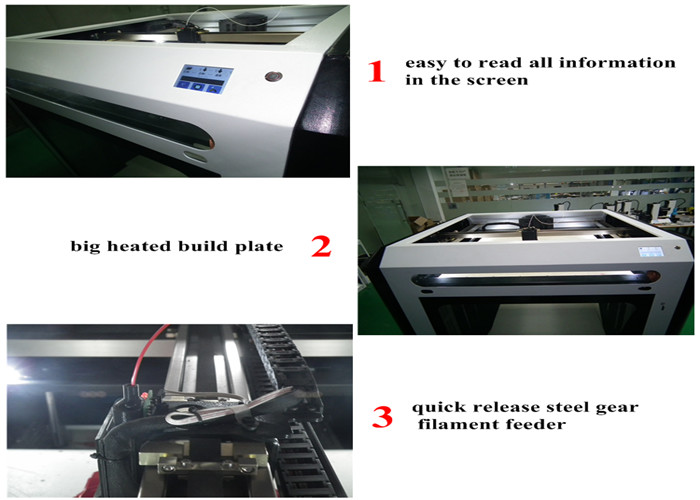

High precision detail:
High Precision Printing Largest Size
750 * 600*750 mm For FDM 3D Printing machine
| Print resuming | When power fails, it will store data automatically, when power
restored, it will print where it left before power outage. |
| Filament supply detector | During printing, when the filament is only left about 2.5 meters,
it will make alarm to remind. |
| Automatic shutdown | When the printer finish printing, it will shut down automatically. |
| WIFI module | Remotely control the printer through mobile phone APP. |
| Dual nozzles | Dual nozzles(quick changeable type, max temp 260℃, 1.75mm filament)
can print two colors. And, one nozzle print object, the other
prints support material. |
| Air filtering | Filter poisonous air produced when printing plastic filaments to
protect people’s health. |
